SQN and SQEN pumps include dry run protection, over and under voltage protection, overload protection, upthrust and over temperature protection.

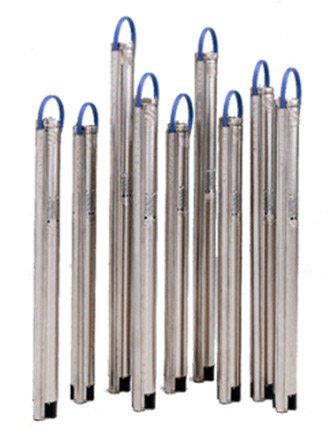

3″ submersible bore hole pumps (Polyamide/316 stainless steel).
For constant pressure operation, select SQEN with CU301 Smartflo constant pressure kit.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | SQN 2 Part No. | SQN 2 Part No. | Diameter |
|---|---|---|---|---|
| SQ 2-35 N | 0.7 | 96160412 | 96160445 | 3" |
| SQ 2-55 N | 0.7 | 96160413 | 96160446 | 3" |
| SQ 2-70 N | 1.15 | 96160414 | 96160447 | 3" |
| SQ 2-85 N | 1.15 | 96160415 | 96160448 | 3" |
| SQ 2-100 N | 1.68 | 96160416 | 96160449 | 3" |
| SQ 2-115 N | 1.85 | 96160417 | 96160450 | 3" |
