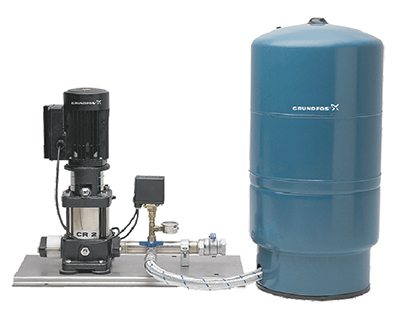

Fixed speed, single pump pressure system.
Discharge pressure switch, pressure gauge and pressure tank.
3 x 415 V pumps not wired. Overload required refer to the Controls & Monitoring Module for MA4P control panel.
S/S manifold & base with pump isolation valve.
Larger pumps & tanks available on request.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | 1 x 240 V 50 Hz Part No. | 3 x 415 V 50 Hz Part No. | Pressure Tank | Connection Size |
|---|---|---|---|---|---|
| CR10-04 | 1.5 | 91348314 | 91349435 | 80 L | 1 1/2" BSP |
| CR10-04 | 1.5 | 91348247 | 91349436 | 130 L | 1 1/2" BSP |
| CR10-05 | 2.2 | 91347108 | 91347116 | 80 L | 1 1/2" BSP |
| CR10-05 | 2.2 | 91347112 | 91347120 | 130 L | 1 1/2" BSP |
| CR10-06 | 2.2 | 91347109 | 91347117 | 80 L | 1 1/2" BSP |
| CR10-06 | 2.2 | 91347113 | 91347121 | 130 L | 1 1/2" BSP |
| CR10-08 | 3 | – | 91347118 | 80 L | 1 1/2" BSP |
| CR10-08 | 3 | – | 91347122 | 130 L | 1 1/2" BSP |
| CR10-10 | 4 | – | 91347119 | 80 L | 1 1/2" BSP |
| CR10-10 | 4 | – | 91347123 | 130 L | 1 1/2" BSP |
