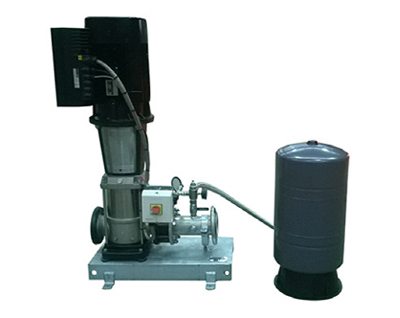

Variable speed, single pump pressure system.
Will run on both 50Hz and 60Hz power supply frequencies and give the exact same pump performance.
Pressure vessel included.
Discharge pressure transducer.
Lockable main isolator with run/fault lights on pump.
Grundfos GO to be purchased separately for onsite programming of E-Pump – refer to the Controls & Monitoring Module.
S/S manifold & base with pump isolation valve (CRIE32 and above and all 240 V CUE models use galvanised base).
Additional pump models available on request.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | 1 x 240 V 50 Hz Part No. | 3 x 415 V 50 Hz Part No. | Pressure Tank | 240V Model- CUE Used | Connection Size |
|---|---|---|---|---|---|---|
| CRIE 3-4 | 0.55 | 98645392 | – | 18L | 1 1/4" BSP | |
| CRIE 3-5 | 0.75 | 98645393 | – | 18L | 1 1/4" BSP | |
| CRIE 3-8 | 1.1 | 98645394 | – | 18L | 1 1/4" BSP | |
| CRIE 3-11 | 1.5 | 98645395 | – | 18L | 1 1/4" BSP | |
| CRIE 3-15 | 2.2 | 98645396 | 98645404 | 18L | 1 1/4" BSP |
