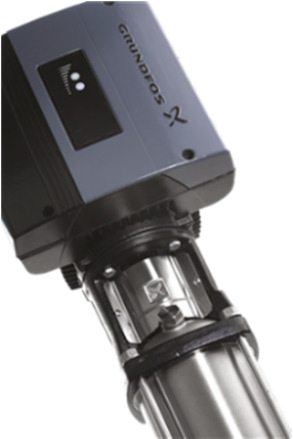

CRN pump with variable speed E motor & pressure sensor.
All 316 stainless steel wetted construction.
Fitted with IP55 motor.
50 / 60 Hz Motors.
Fitted with viton elastomers.
Pumps run up to 3400-3500 RPM.
Pumps certified to AS/NZS 4020 for use with potable water.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | 3 x 415 V 50 Hz Part No. | Connection Size | Seal |
|---|---|---|---|---|
| CRNE 64-1-1 | 7.5 | 96124045 | Flange DIN DN 100 | HQQV |
| CRNE 64-1 | 11 | 96124046 | Flange DIN DN 100 | HQQV |
| CRNE 64-2-2 | 15 | 96124047 | Flange DIN DN 100 | HQQV |
| CRNE 64-2-1 | 18.5 | 96124048 | Flange DIN DN 100 | HQQV |
| CRNE 64-3-2 | 22 | 96124049 | Flange DIN DN 100 | HQQV |
