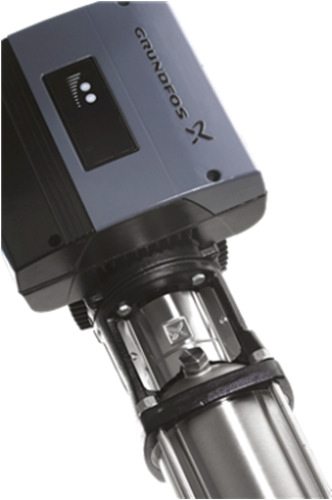

CRI pump with variable speed E motor & pressure sensor.
All 304 stainless steel wetted construction.
Fitted with EPDM elastomers.
50/60 Hz Motor.
Fitted with IP55 motor.
Pumps run up to 3400-3500 RPM.
Pumps certified to AS/NZS 4020 for use with potable water.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | 1 x 240 V 50 Hz Part No. | 3 x 415 V 50 Hz Part No. | Connection Size | Seal |
|---|---|---|---|---|---|
| CRIE 5-2 | 0.55 | 98390086 | 98390098 | Flange DIN DN 25/32 | HQQE |
| CRIE 5-4 | 1.1 | 98390087 | 98390100 | Flange DIN DN 25/32 | HQQE |
| CRIE 5-5 | 1.5 | 98390088 | 98390101 | Flange DIN DN 25/32 | HQQE |
| CRIE 5-9 | 2.2 | – | 98390102 | Flange DIN DN 25/32 | HQQE |
| CRIE 5-12 | 3 | – | 96554235 | Flange DIN DN 25/32 | HQQE |
| CRIE 5-16 | 4 | – | 96554236 | Flange DIN DN 25/32 | HQQE |
| CRIE 5-22 | 5.5 | – | 96554237 | Flange DIN DN 25/32 | HQQE |
| CRIE 5-24 | 7.5 | – | 96554238 | Flange DIN DN 25/32 | HQQE |
