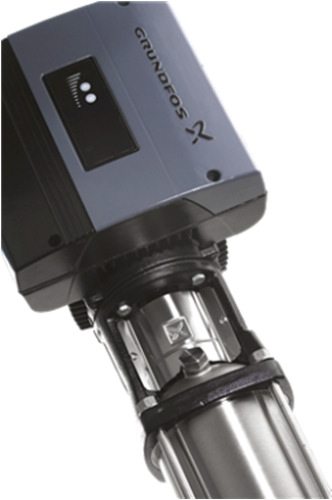

CRI pump with variable speed E motor & pressure sensor.
All 304 stainless steel wetted construction.
Fitted with EPDM elastomers.
50/60 Hz Motor.
Fitted with IP55 motor.
Pumps run up to 3400-3500 RPM.
Pumps certified to AS/NZS 4020 for use with potable water.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | 1 x 240 V 50 Hz Part No. | 3 x 415 V 50 Hz Part No. | Connection Size | Seal |
|---|---|---|---|---|---|
| CRIE 3-2 | 0.37 | 98389793 | 98389812 | Flange DIN DN 25/32 | HQQE |
| CRIE 3-4 | 0.55 | 98389794 | 98389813 | Flange DIN DN 25/32 | HQQE |
| CRIE 3-5 | 0.75 | 98389795 | 98389814 | Flange DIN DN 25/32 | HQQE |
| CRIE 3-8 | 1.1 | 98389796 | 98389815 | Flange DIN DN 25/32 | HQQE |
| CRIE 3-11 | 1.5 | 98389797 | 98389816 | Flange DIN DN 25/32 | HQQE |
| CRIE 3-17 | 2.2 | – | 98389818 | Flange DIN DN 25/32 | HQQE |
| CRIE 3-23 | 3 | – | 96554142 | Flange DIN DN 25/32 | HQQE |
| CRIE 3-25 | 4 | – | 96554144 | Flange DIN DN 25/32 | HQQE |
