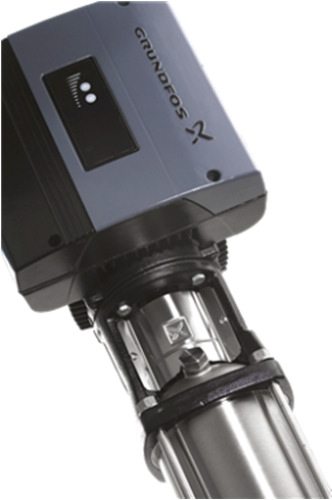

CRI pump with variable speed E motor & pressure sensor.
All 304 stainless steel wetted construction.
Fitted with EPDM elastomers.
50/60 Hz Motor.
Fitted with IP55 motor.
Pumps run up to 3400-3500 RPM.
Pumps certified to AS/NZS 4020 for use with potable water.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | 1 x 240 V 50 Hz Part No. | 3 x 415 V 50 Hz Part No. | Connection Size | Seal |
|---|---|---|---|---|---|
| CRIE 10-1 | 0.75 | 98390294 | 98390696 | Flange DIN DN 40 | HQQE |
| CRIE 10-2 | 1.5 | 98390295 | 98390300 | Flange DIN DN 40 | HQQE |
| CRIE 10-3 | 2.2 | – | 98390301 | Flange DIN DN 40 | HQQE |
| CRIE 10-5 | 3 | – | 96514449 | Flange DIN DN 40 | HQQE |
| CRIE 10-6 | 4 | – | 96514450 | Flange DIN DN 40 | HQQE |
| CRIE 10-9 | 5.5 | – | 96514451 | Flange DIN DN 40 | HQQE |
| CRIE 10-12 | 7.5 | – | 96514452 | Flange DIN DN 40 | HQQE |
| CRIE 10-17 | 11 | – | 96514453 | Flange DIN DN 40 | HQQE |
