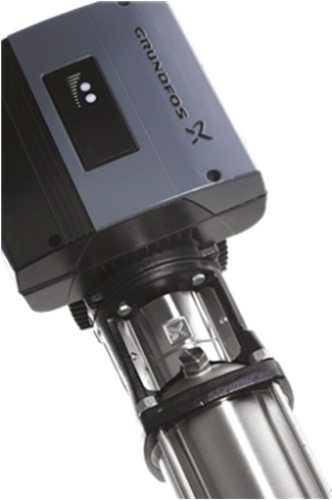

CRI pump with variable speed E motor & pressure sensor.
All 304 stainless steel wetted construction.
Fitted with EPDM elastomers.
50/60 Hz Motor.
Fitted with IP55 motor.
Pumps run up to 3400-3500 RPM.
Pumps certified to AS/NZS 4020 for use with potable water.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | 1 x 240 V 50 Hz Part No. | 3 x 415 V 50 Hz Part No. | Connection Size | Seal |
|---|---|---|---|---|---|
| CRIE 1-4 | 0.37 | 98389394 | 98389414 | Flange DIN DN 25/32 | HQQE |
| CRIE 1-6 | 0.55 | 98389395 | 98389416 | Flange DIN DN 25/32 | HQQE |
| CRIE 1-9 | 0.75 | 98389397 | 98389417 | Flange DIN DN 25/32 | HQQE |
| CRIE 1-13 | 1.1 | 98389398 | 98389418 | Flange DIN DN 25/32 | HQQE |
| CRIE 1-17 | 1.5 | 98389399 | 98389419 | Flange DIN DN 25/32 | HQQE |
| CRIE 1-25 | 2.2 | – | 98389420 | Flange DIN DN 25/32 | HQQE |
| CRIE 1-27 | 3 | – | 96554107 | Flange DIN DN 25/32 | HQQE |
