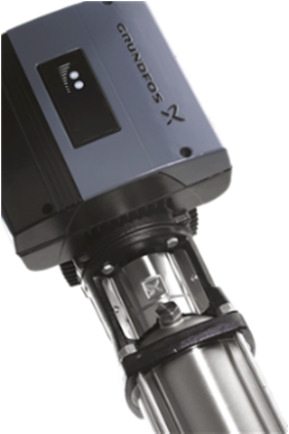

CR pump with variable speed E motor & pressure sensor.
Fitted with IP55 motor.
50/60 Hz Motor.
Fitted with EPDM elastomers.
Pumps run up to 3400-3500 RPM.
*Swipe on table left and right when viewing on mobile devices.
| Model | kW | 1 x 240 V 50 Hz Part No. | 3 x 415 V 50 Hz Part No. | Connection Size | Seal |
|---|---|---|---|---|---|
| CRE 5-2 | 0.55 | 98390032 | 98390039 | BSP 11/4” | HQQE |
| CRE 5-4 | 1.1 | 98390033 | 98390040 | BSP 11/4” | HQQE |
| CRE 5-5 | 1.5 | 98390035 | 98390041 | BSP 11/4” | HQQE |
| CRE 5-9 | 2.2 | – | 98390042 | BSP 11/4” | HQQE |
| CRE 5-12 | 3 | – | 96553934 | BSP 11/4” | HQQE |
| CRE 5-16 | 4 | – | 96553908 | Flange DIN DN 25/32 | HQQE |
| CRE 5-22 | 5.5 | – | 96553909 | Flange DIN DN 25/32 | HQQE |
| CRE 5-24 | 7.5 | – | 96553912 | Flange DIN DN 25/32 | HQQE |
